Home Energy System Hybrid Power System Solar Panel With Battery And Inverter

  • RANKTOP
  • ZhongShan
  • 5-15 Days
  • 5000/Week
3.5KW/5KW/5.5KW INVERTER WITH ENERGY STORAGE SYSTEM 1.One-stop home solution. 2.Modular design and intelligent switching. 3.Each battery is equipped with an independent BMS Lifepo4 Battery energy management system. 4.Solar Home System Inverter,Support GPRS/WIFI/RS485, remote monitoring. 5.Warranty 3 years, 10+ years life design.

Inverter with energy storage system


Solar Home System Inverter

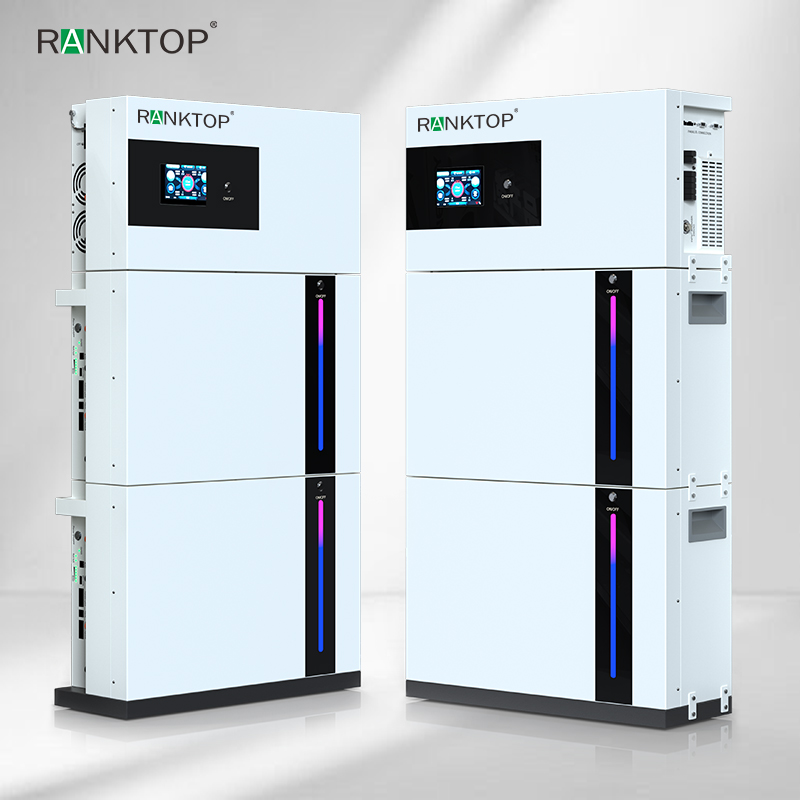

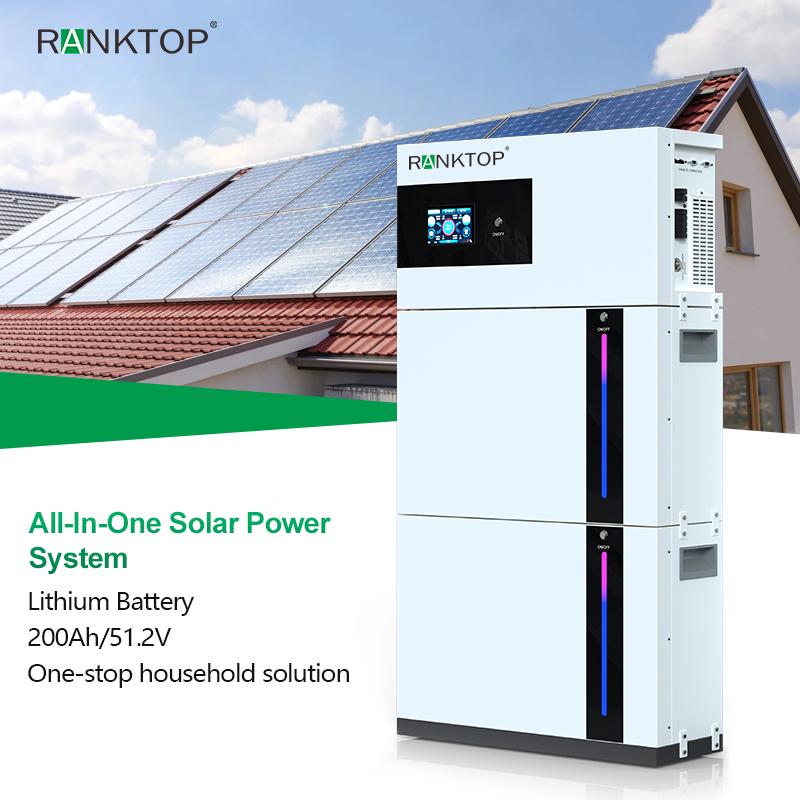

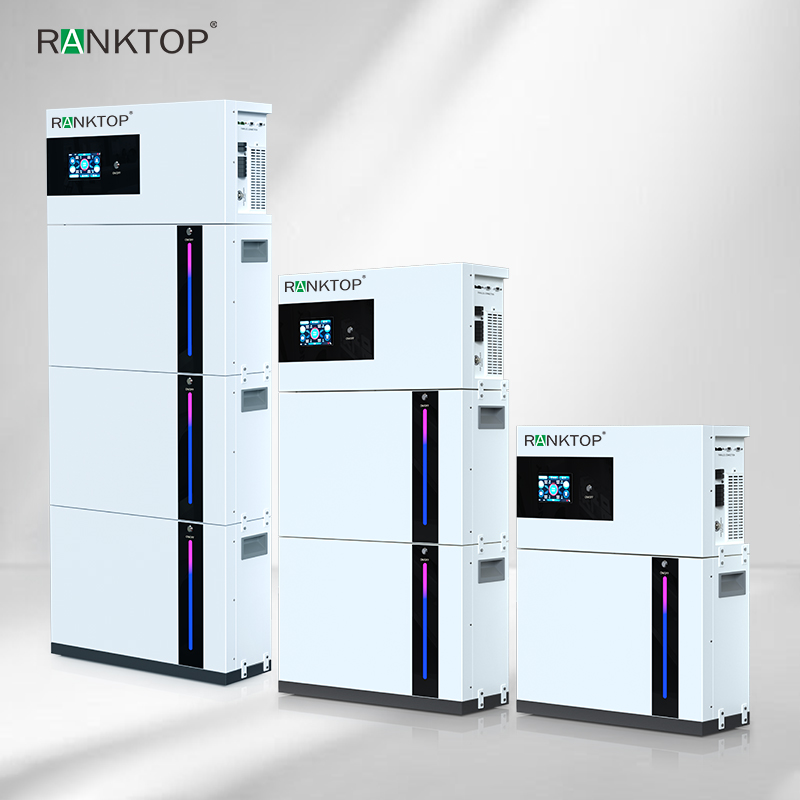

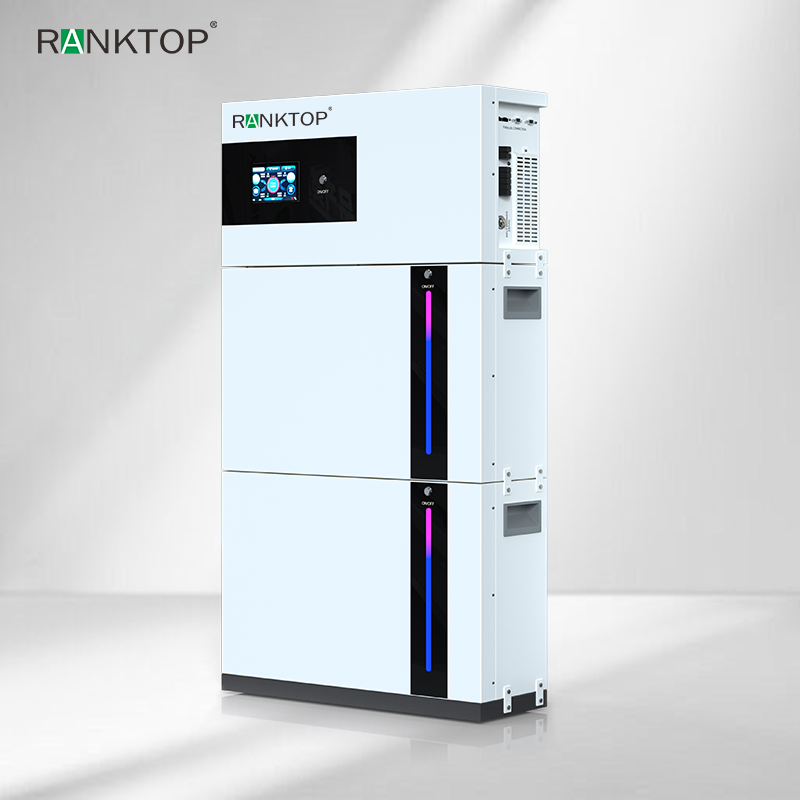

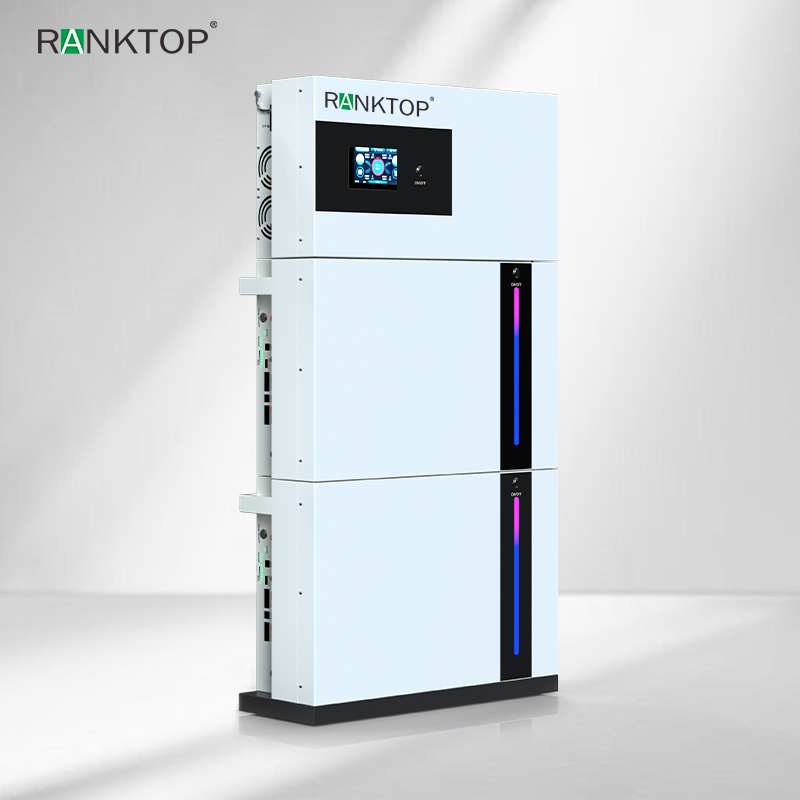

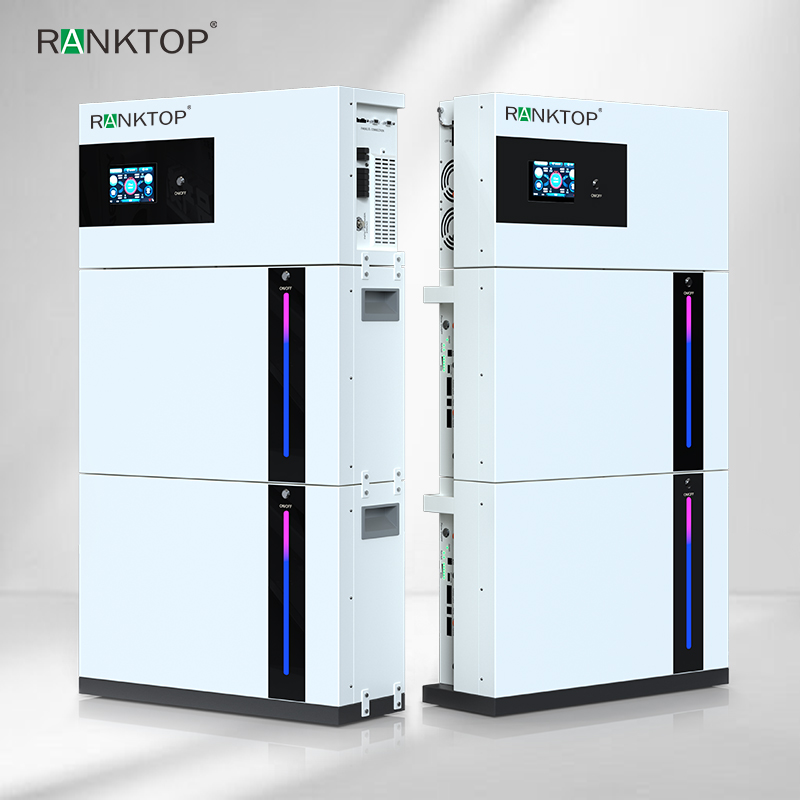

5.5kW All-In-One Solar Power System

Rated Power: 5.5kW

Lithium Battery: 200Ah/51.2V

AC Output Voltage: 230VAC

AC Output Frequency: 50/60Hz

AC Input Voltage Range: 230VAC

AC Input Frequency: 50/60Hz

AC Charge Current: 80A

Maximum PV Voltage: 450VDC

MPPT Voltage Range: 120-430VDC

PV Charge Current: 80A

Maximum Input Current: 18A

Temperature For Operation: -20-+50℃

Temperature For Storage: -30 -+70℃

External Dimensions: 618*1072*198mm

Warranty: 3 years


Product Advantage

FUNCTIONAL FEATURES

● Pure sine wave inverters;

● Integrated MPPT controller/charger;

● Settable priority of utility and PV power supply;

● Wide PV input voltage;Energy Storage Battery System.

● Settable battery type, supporting lead-acid and lithium batteries;

● Functions and parameters can be set via the LCD;

● With battery equalization function to optimize battery performance and extend battery life.

SYSTEM SCHEMATIC

The following figure shows the system application scenario of this product. A complete system includes the following parts:

● Photovoltaic module: Convert light energy into DC electric energy, charge the battery through Inverter with energy storage system, or directly reverse it into AC to power the load.

● Utility or generator: Connected at the AC input, it can supply power to the load and charge the Energy Storage Battery System at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module.

● Battery: The role of the Lifepo4 Battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.

●  Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.

●  Customized Home solar energy storage System Integrated Machine: The energy conversion device of the whole system.

APPLICATION

-New-energy generation: Effectively smoothen the power output to decrease the impact to the grid

-Generate according to the plan and correct forecast errors-Reduce the peak and fill the valley

-Grid frequency modulation with AVC and AGC functions-Electricity of transmission and distribution-  Smart Grid.Stackable Battery Lifepo4 Battery

- Micro-grid- Reduce the peak and fill the valley-Military Base, smelter, chemical plant, paper mill, airport, wharf and others.CONTACT US
