Complete residential off grid solar power system 6.2KW off grid photovoltaic system kit

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

High Efficiency : With its optimized design and advanced technology, our inverter delivers maximum power output, ensuring you get the most out of your solar panels. Reliability : Built with high-quality components, our inverter is designed to last and provide you with uninterrupted clean energy for years to come. Easy Installation : Our inverter is user-friendly and can be easily installed by an electrician, making your switch to solar energy a hassle-free process.

On/Off Grid Solar inverter

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 10 pcs In Series

6.2KW Solar Inverter (On/Off Grid)

Battery Voltage: 51.2VDC

Full Load: 6200W

Nominal Operating Voltage: 240VDC

Maximum PV Voc: 500VDC

PV Input Voltage Range: 60-450VDC

Maximum PV Input Current: 22A

Full Load MPPT Range: 240-450VDC

Maximum PV Input Power: 6200W

Nominal Output Voltage: 220/230/240VAC 50/60Hz

Maximum PV Charge Current: 120A

Nominal AC Input Voltage: 230VAC, 50/60Hz

Maximum AC Charging Current: 100A

Communication: RS232/GPRS/WIFI/LITHIUM BATTERY

Product Size: 443*359*113mm

Net Weight: 8.8kg

Warranty: 3 Years

51.2V 184AH Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 51.2V

Nominal Capacity: 184Ah

Charging Cut-off Voltage: 58.4V

Discharging Cut-off Voltage:40.8V

Max. Cont. Charging Current: 184A

Max. Cont. Discharging Current: 184A

Cycle Life:≥6000

Product Size: 800*551*175mm

Weight: 61kg

Warranty: 5 years

Attachment

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm2 PV Wire, Red, 20m

4mm2 PV Wire, Black, 20m

4mm2 PV Wire, Black, 2m

25mm2 PV Wire, Red, 5m

25mm2 PV Wire, Black, 5m

Product Advantage

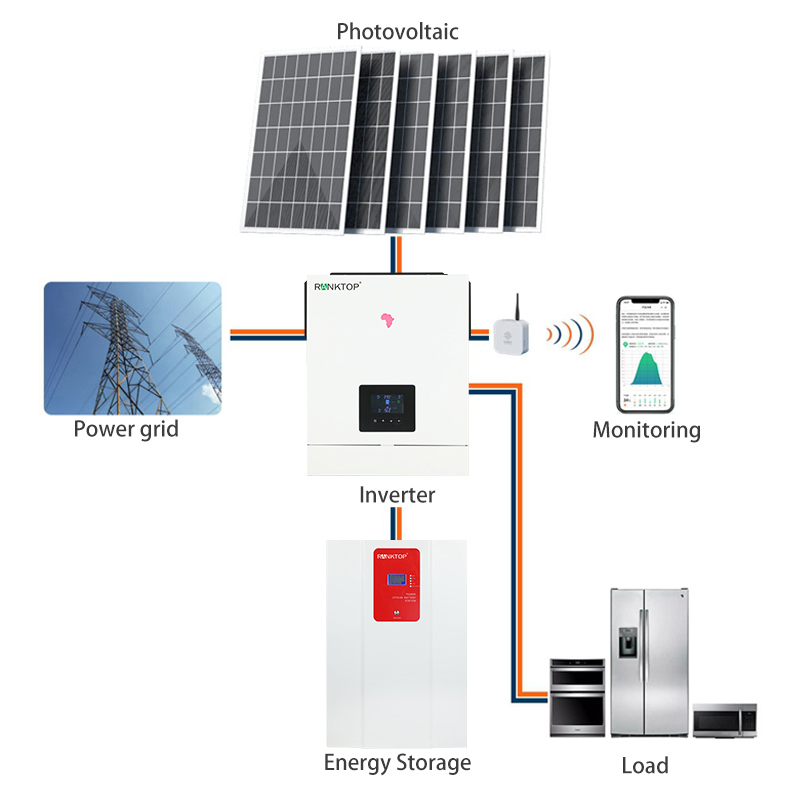

The THON series Solar Energy Storage inverter is a new device that integrates solar energy storage, mains charging energy storage, and AC sine wave output. It adopts DSP control and advanced control algorithm, which is characterized by fast response and high reliability and meets industry standards. The inverter offers four charging modes: solar charging, mains priority, mains + solar charging, and inverter and mains output to suit different application scenarios. As an on/off-grid solar inverter, it is suitable for solar panel systems with batteries, providing energy storage inverters and energy storage solutions, and is an ideal choice for solar panel battery energy storage systems.
