Household Solar Inverter And Battery All In One Machine
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week

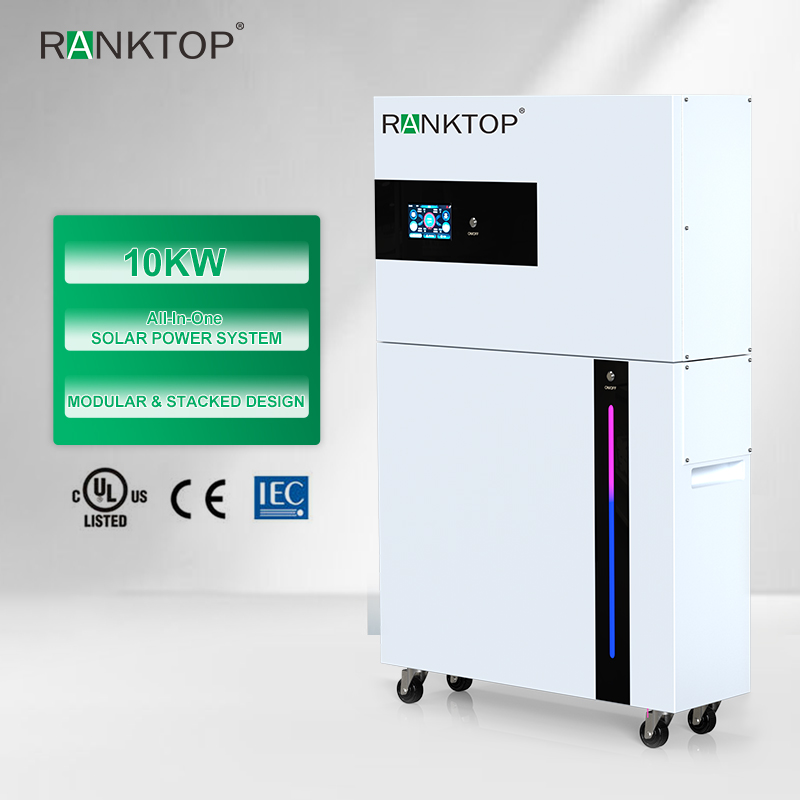

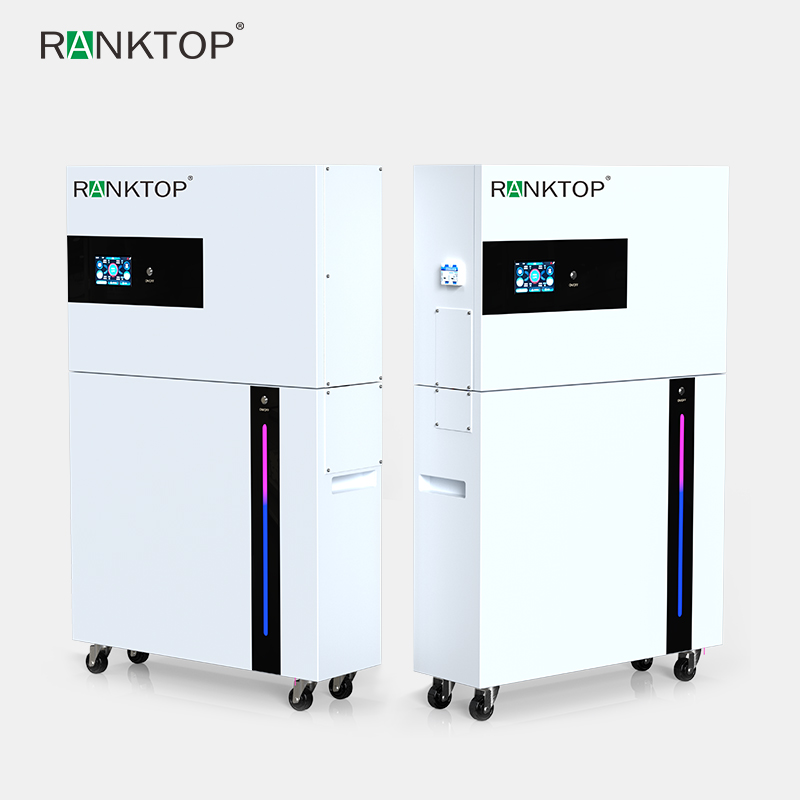

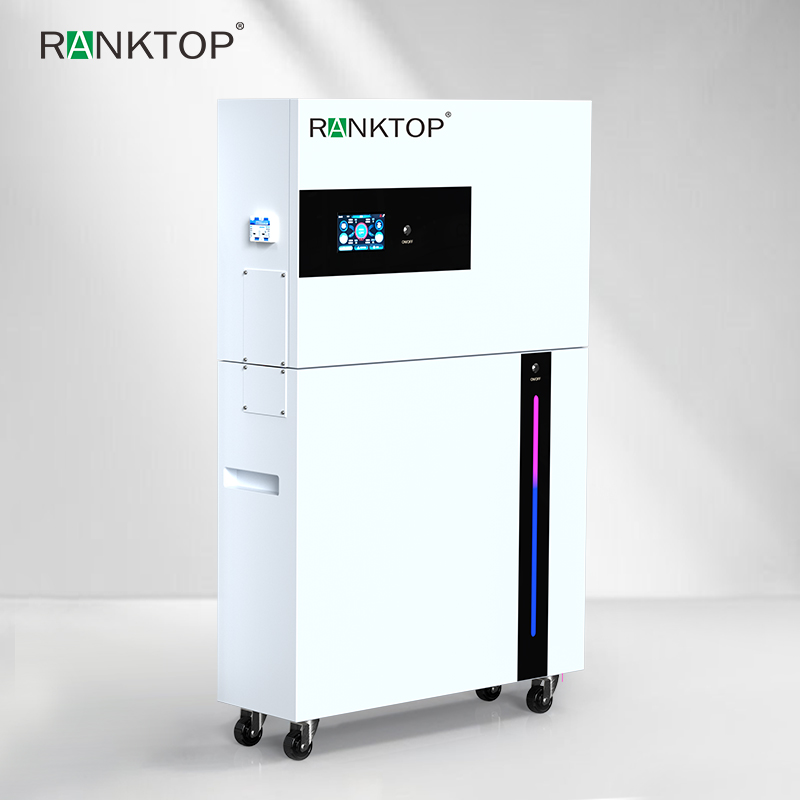

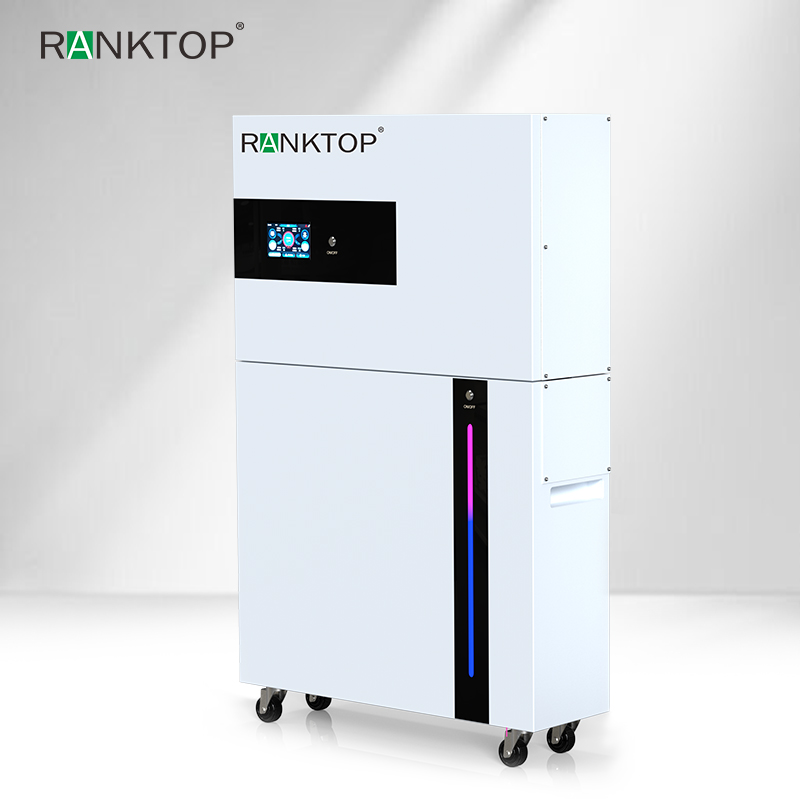

10kW All-In-One Solar Power System
Rated Power: 10kW
Lithium Battery: 300Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 90-450VDC
PV Charge Current: 150A
Maximum Input Current: 27A*2
Temperature For Operation: -10-+50℃
Temperature For Storage: -15 -+60℃
External Dimensions: 666*1157*220mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
Product Advantage
1OKW/ 15.36KWH INVERTER WITH ENERGY STORAGE SYSTEM
The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital. intelligent design with advanced SPWM technology. outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LCD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

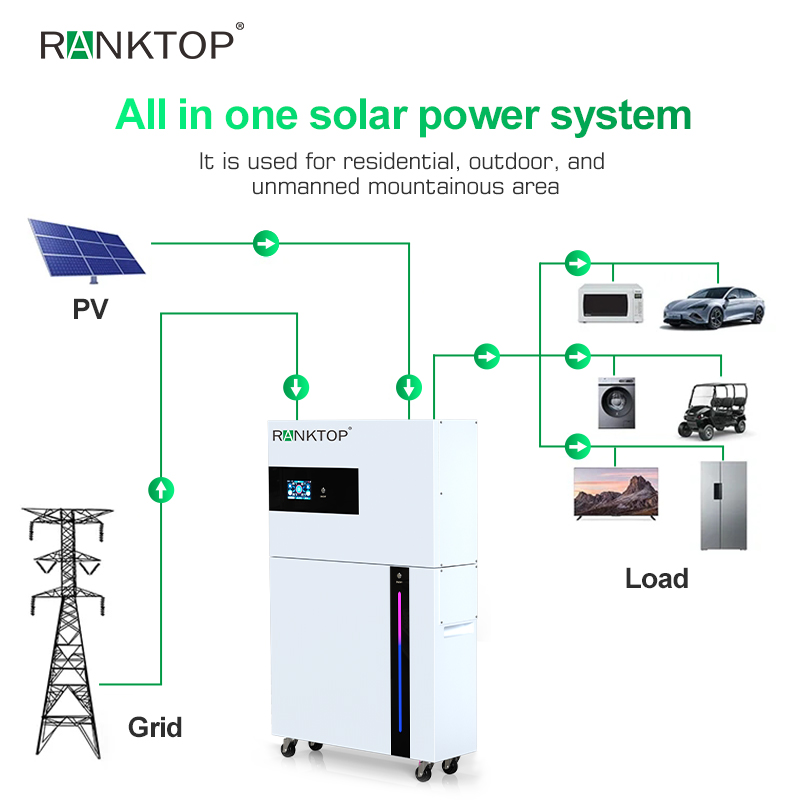

SYSTEM SCHEMATIC
The following figure shows the system application scenario of this product. A complete system includes the following parts:
1. Photovoltaic module: Convert light energy into DC electric energy, charge the battery through energy storage inverter, or directly reverse it into AC to power the load,Energy Storage System Inverter.
2. Utility or generator: Connected at the AC input, it can supply power to the load and charge the battery at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module.
3. Battery: The role of the battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.
4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.Home Energy Storage Battery.
5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.CONTACT US
